Fire Geeks - Space Apps Challenge

Team Updates

LORA.. our new technology that can cover signals in range around 100km

Abdulrahman suliman

this kind of sensors is using to study the animal life and our sensors is look nearly the same so we can use it to find the fire in the forests

Abdulrahman suliman

Fahad Salem Al-Qurashi

Animals we may use for Alive forest sensors

Mohamed Amr Ibrahim

Types of forest fires

Abdullah Mohammed ali alzhrani

LoRa-Device-Developer-Guide-Orange

Abdullah Mohammed ali alzhrani

Fires and Thermal Anomalies ( Day and Night ):

https://worldview.earthdata.nasa.gov/?p=geographic...

Abdelrahman Osama

low power smoke detector

Fahad Salem Al-Qurashi

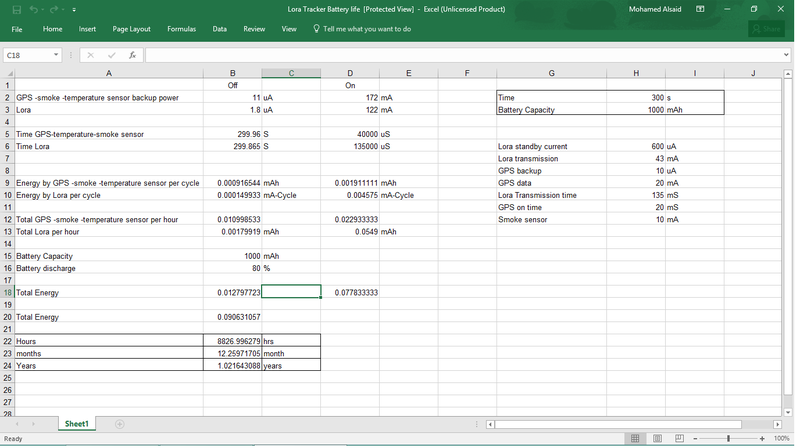

The calculation of the battery cycle

Abdullah Mohammed ali alzhrani

The technology that we gonna use to send the data from the forest sensors to NASA maps

Abdullah Mohammed ali alzhrani

The temperature sensors

Abdullah Mohammed ali alzhrani

1-Using animals as Alive Forest Sensors Enables a more dynamic and wider detection as compared to fixed sensors .

2- The fewer Sensors Needed means a significant reduction in cost compared to fixed sensors.

3-Since animals can go where human can not , previously unreachable areas can now be controlled.

4-Classification of animals individual and group behavior can be used for other purposes , in particular , the system may be use to detect poaching and monitor comprehensive animal deaths .

Mohamed Amr Ibrahim

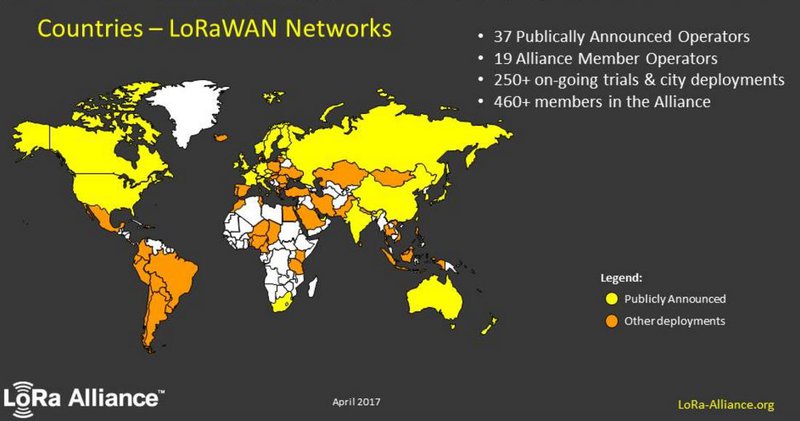

After Search and query we found thats LORA is The least use of energy and the lowest cost of tracking and Sensoring Devices

Mohamed Amr Ibrahim

Project Statistics

Mohamed Amr Ibrahim

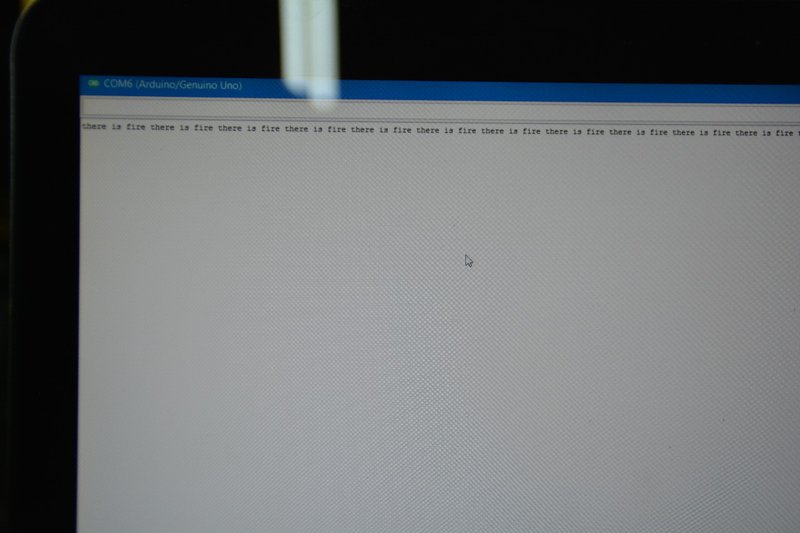

The Alert showing thats the sensor Exposed to smoke

Mohamed Amr Ibrahim

Testing the Sensors

Mohamed Amr Ibrahim

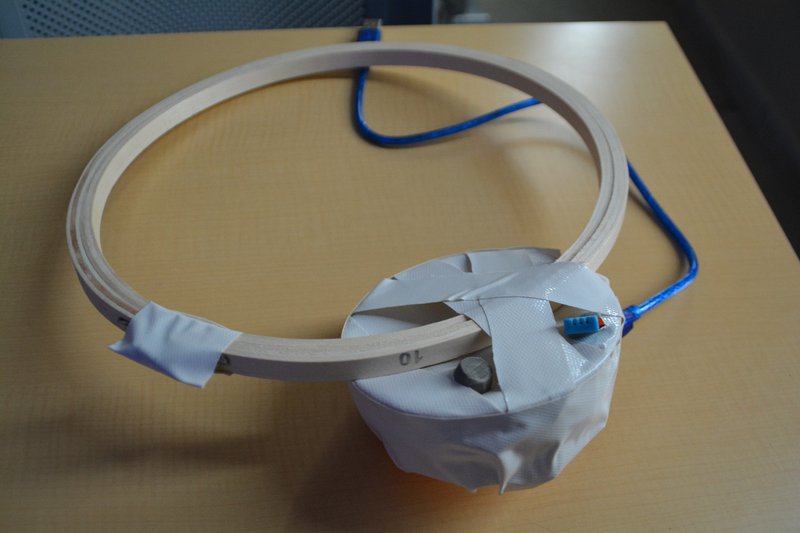

The Prototype ...

Mohamed Amr Ibrahim


        int smokeA0 = A5;

        // Your threshold value

        int sensorThres = 100;

        void setup() {

          pinMode(smokeA0, INPUT);

          pinMode(8, OUTPUT);

          Serial.begin(9600);

        }

        void loop() {

             Serial.print("");

          int analogSensor = analogRead(smokeA0);

          // Checks if it has reached the threshold value

          if (analogSensor > sensorThres)

          {

            Serial.print("");

            Serial.print("there is fire");

            Serial.print("");

            delay(1000);

            Serial.print(" ");

        }

        }

view raw Smoke Sensor hosted with ❤ by GitHub

Mohamed Amr Ibrahim

Fire Geeks

Mohamed Amr Ibrahim

Testing the fire alert

Mohamed Amr Ibrahim

The Team (Fire Geeks)

Mohamed Amr Ibrahim

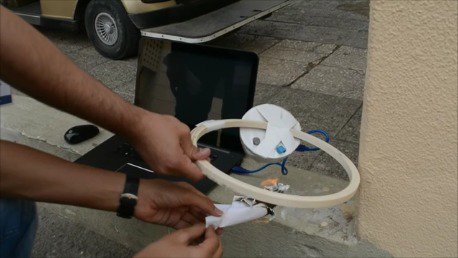

Prototype in progress ...

Mohamed Amr Ibrahim
